Medical Devices - Cancer Treatment Proton Gun Design (Gantry)

Solfins Engineering Projects - No.8
04. мај 2020. by
Medical Devices - Cancer Treatment Proton Gun Design (Gantry)
Solfins doo, Mladen Bogićević
| No comments yet

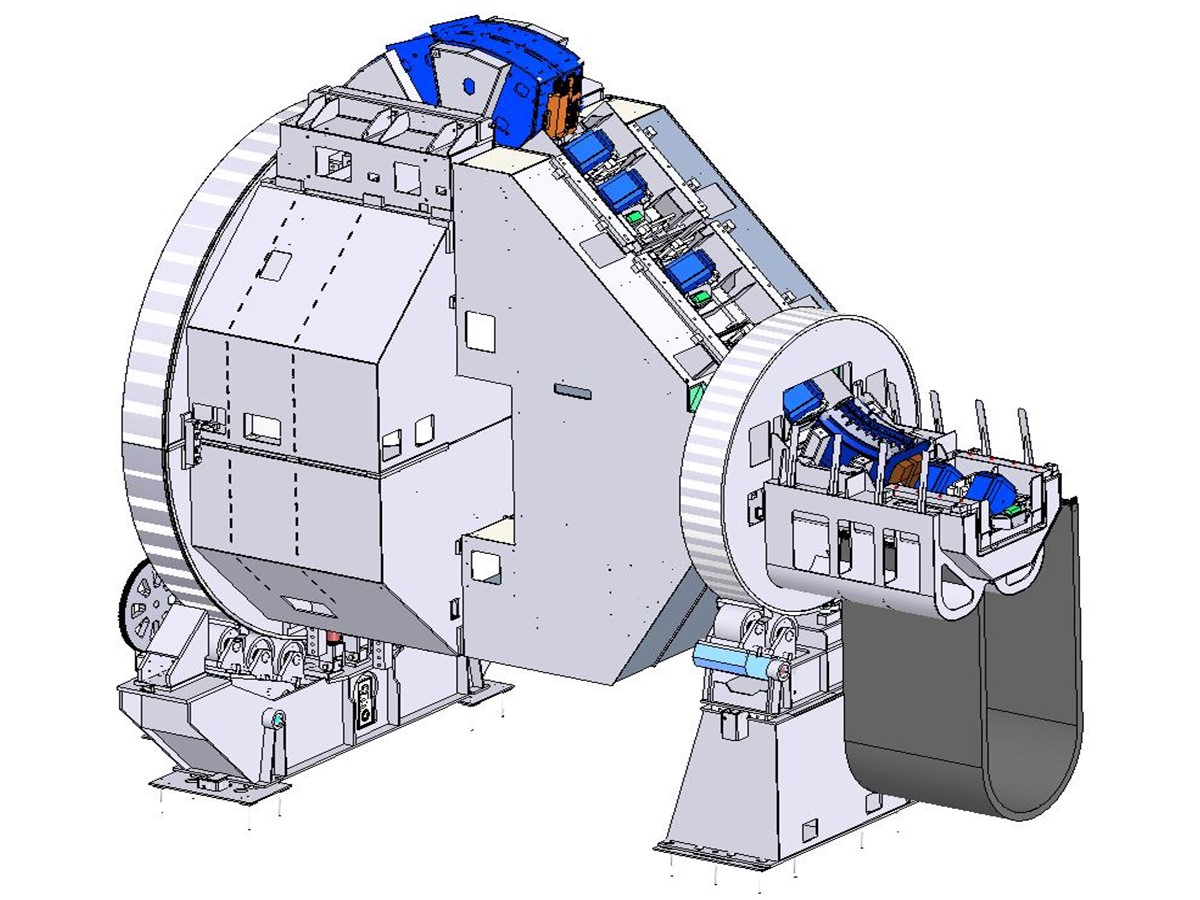

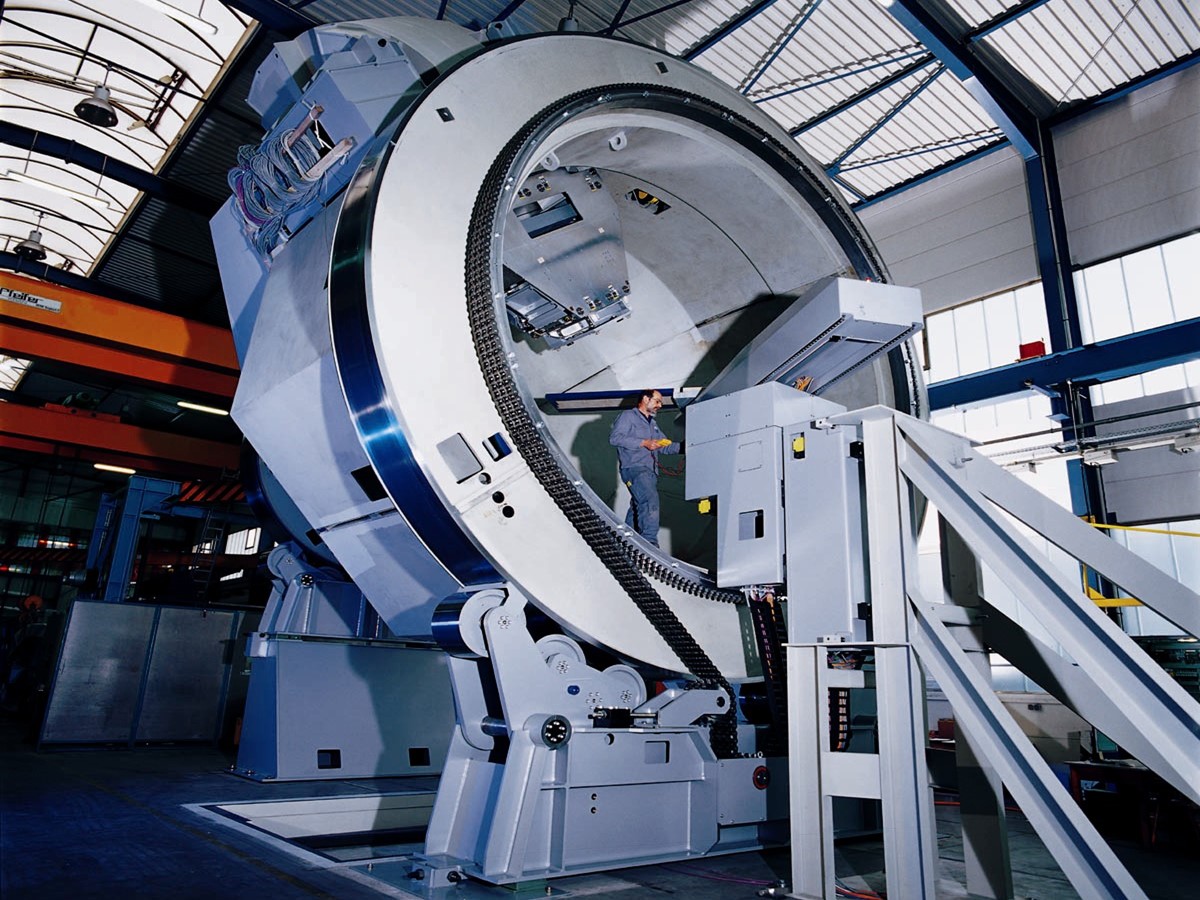

Gantry cancer treatment proton gun design.

Structural analysis and optimization of welded structure.

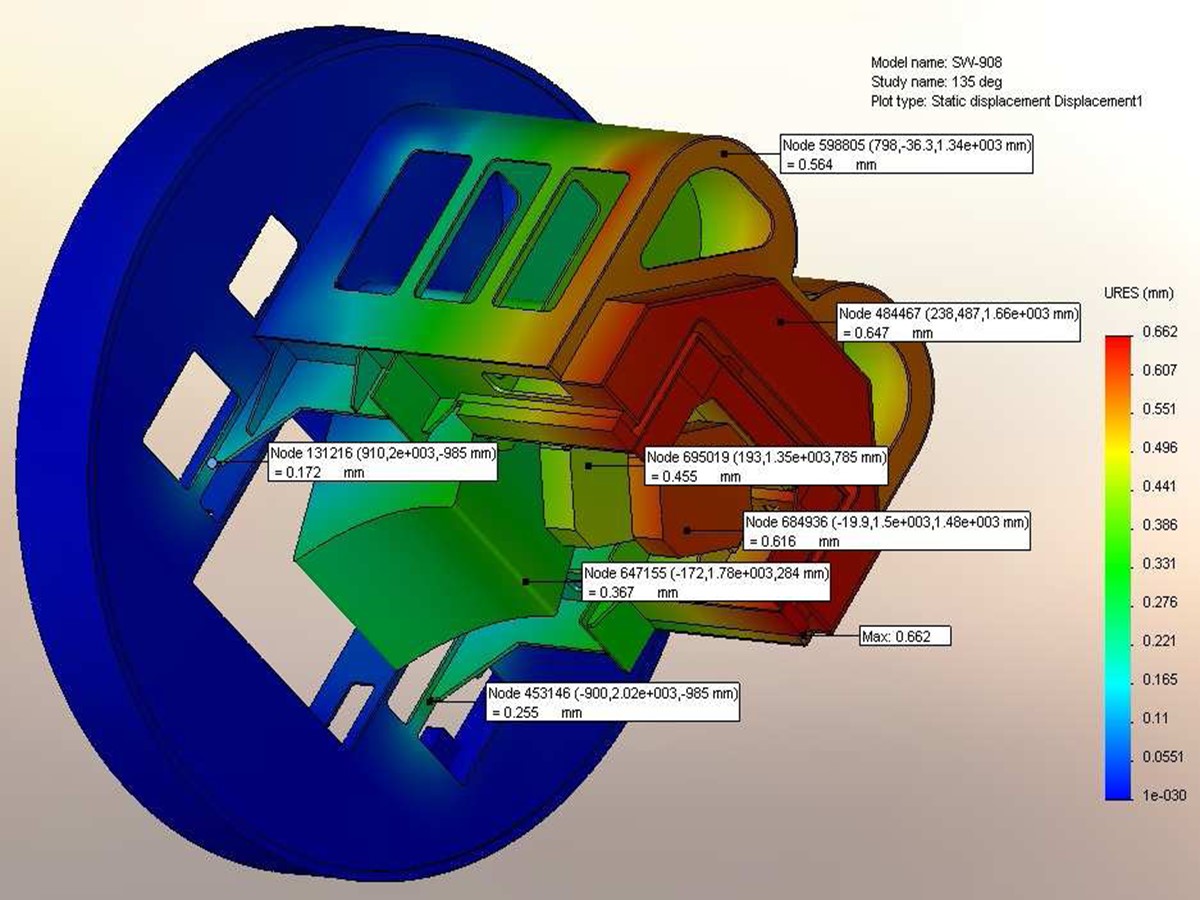

Reduced deformations from 0.707 mm to 0.132 mm.

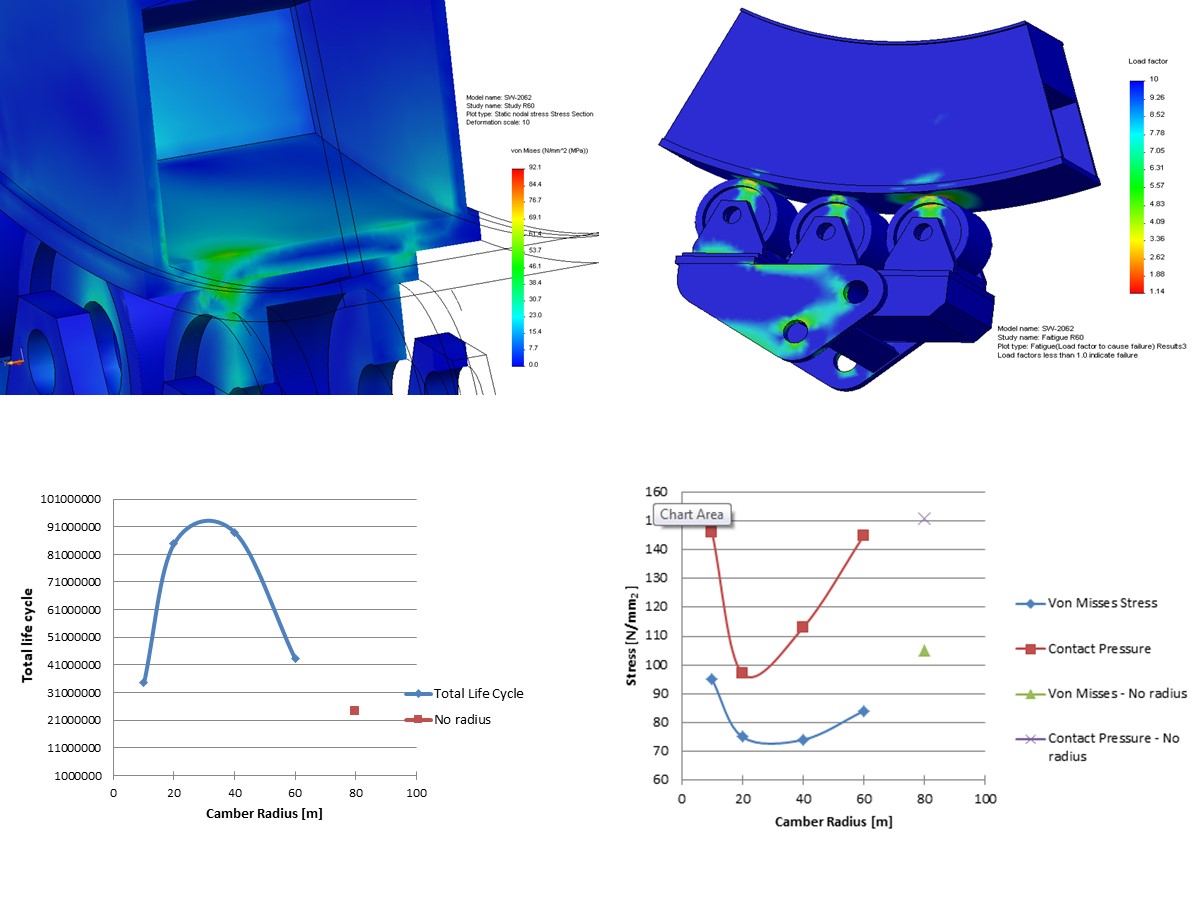

Fatigue analysis of roller supports and optimization of roller radius (camber radius).

Medical Devices - Cancer Treatment Proton Gun Design (Gantry)
Solfins doo, Mladen Bogićević 04. мај 2020.
